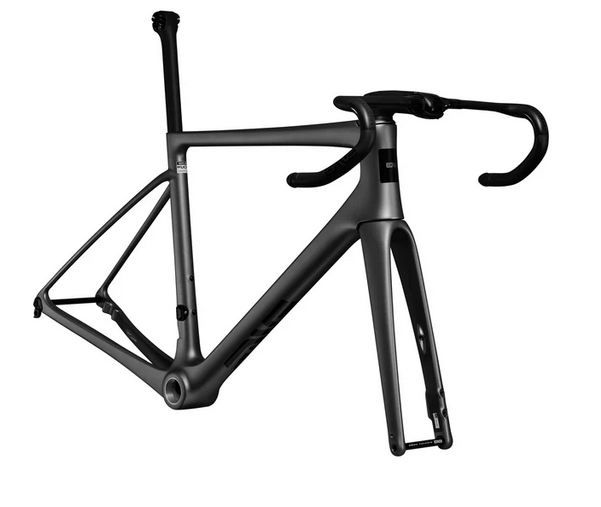

ENVE MELEE FRAME ONLY DAMASCUS

FOR CUSTOM BUILDS ONLY,

PLEASE GET IN TOUCH

The Melee is a modern road racer that delivers on ENVE’s Real-World Fast™ design philosophy. Built for agility and response, with 35 mm of tire clearance, the Melee is ready for criteriums and classics alike.

An ENVE Chassis is the canvas The Melee is a modern road racer that delivers on ENVE’s Real-World Fast™ design philosophy. Built for agility and response, with 35 mm of tire clearance, the Melee is ready for criteriums and classics alike. An ENVE Chassis is the canvas upon which you can build your dream bike. The Melee is sold as a chassis-only which includes the frame, fork, headset, stem, handlebar, and seatpost. To initiate your build, begin by selecting your frame size, stem length, handlebar width, and seatpost setback. If there are questions regarding your fit, work with your ENVE retailer and/or bike fitter, and employ the use of the ENVE Best-Fit Calculator to reach your ideal chassis configuration. From there, pair it with your drivetrain of choice and your favorite SES or Foundation wheelset. *

FRAME ONLY ( Bar, Stem, Seat Post and Seat NOT INCLUDE )

PRODUCT DETAILS Real-World Fast™ aero optimization Tube shapes complement SES rim shapes Max Tire Clearance: 35 mm Frame Weight: 850 grams (56cm, Painted, No Hardware) Frame Material ENVE M.O.D Carbon Fork Material ENVE M.O.D Carbon Target Application Road Race/Performance Sizes (cm) 47, 50, 52, 54, 56, 58, 60 Fork Rake 55, 51, 47, 43, 39 Frame Size/Fork Rake 47cm/55, 50cm/51, 52cm/47, 54cm/47, 56cm/43, 58cm/43, 60cm/39 Frame Weight 850g +/- 2% (Size 56, Painted, No Hardware) Headset ENVE Integrated IS52/IS52 Internal Drop-In Headset Bearing 1.5" IS52 Upper and Lower Seat Post Diameter ENVE Aero BB Type T47 Inboard Bearing Brake Mount Flat Mount Front Axle 12×100 (Total Length: 122, TP:1.5, TL:15) Rear Axle 12×142 (Total Length: 168, TP:1.0, TL:14) Minimum Tire Size 25c Optimal Tire Size 27c-32c Maximum Listed Tire Clearance 35c Frame Routing Internal

COMPONENT COMPATIBILITY Handlebars SES AR (38, 40, 42, 44, 46) Stem ENVE Integrated (80, 90, 100, 110, 120, 130) Seat Posts Aero 275mm x 0 Offset Aero 350mm x 0 Offset Aero 350mm x 20 Offset DRIVETRAIN COMPATIBILITY Shimano Mechanical 1x Yes Shimano Mechanical 2x Yes Shimano Electronic Di2 (1x/2x) Yes SRAM Mechanical 1x Yes SRAM Mechanical 2x No (Melee requires continuous housing for FD) SRAM AXS (1x/2x) Yes Campy Mechanical 1x Yes Campy Mechanical 2x No (Melee requires continuous housing for FD) Campy Electronic EPS Not Compatible BRAKE ROTORS Fork Fork is 160mm only Frame Rear brake/frame is 140mm or 160mm with adapter.
