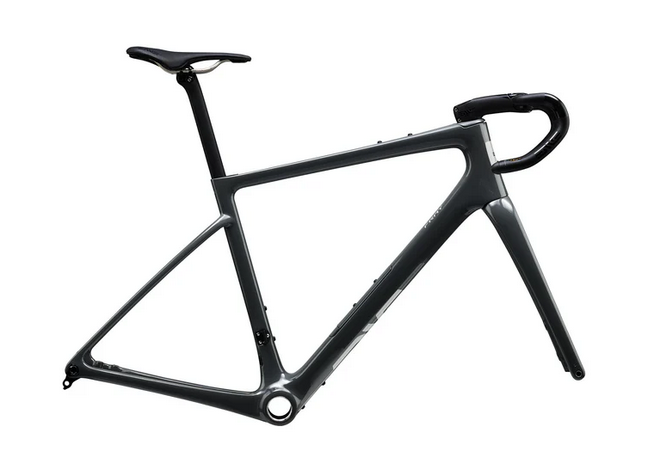

ENVE FRAY FRAME ONLY ASH

FOR CUSTOM BUILDS ONLY,

PLEASE GET IN TOUCH

All Road or Endurance, call it what you want. The Fray is for riders who want speed, versatility, and max performance – infused with a World Tour pedigree and a call for exploration.
An ENVE Chassis is the canvas upon which you can build yo All Road or Endurance, call it what you want. The Fray is for riders who want speed, versatility, and max performance – infused with a World Tour pedigree and a call for exploration. An ENVE Chassis is the canvas upon which you can build your dream bike. The Fray is sold as a chassis-only which includes the frame, fork, headset, stem, handlebar, and seatpost. To initiate your build, begin by selecting your frame size, stem length, handlebar width, and seatpost setback. If there are questions regarding your fit, work with your ENVE retailer and/or bike fitter, and employ the use of the ENVE Best-Fit Calculator to reach your ideal chassis configuration. From there, pair it with your drivetrain of choice and your favorite SES or Foundation wheelset. *

FRAME ONLY ( Bar, Stem, Seat Post and Seat NOT INCLUDE )

PRODUCT DETAILS Real-World Fast™ aero optimization Geometry optimized for 31mm - 35mm tires Tire clearances fits up to a 700 x 40mm (1x), 700 x 38mm (2x) ENVE Cargo Bay integrated downtube storage allows in-frame storage solution Top tube and downtube mounts for adding bags, bottle cage, tools, or any other gear needed to tack on for big adventure rides Aero tube shapes & design that complements SES rim shapes Universal Derailleur Hanger (UDH) compatible allows choice of drivetrain Frame Weight 900g (Size 56cm Painted, No Hardware) FRAME SPECS Frame Material ENVE M.O.D Carbon, 12x142 Thru-Axle, Flat Mount Disc, Threaded &47 BB, Internal Routing, Fender Compatible Fork Material ENVE M.O.D Carbon, 12x100 Thru-Axle, Flat Mount Disc, Internal Routing, Fender Compatible Target Application All Road / Endurance / Mixed Surface / Sportif / Fondo Sizes (cm) 47, 50, 52, 54, 56, 58, 60 Fork Rake 55, 51, 47, 43 Frame Size/Fork Rake 47cm/55, 50cm/55, 52cm/51, 54cm/51, 56cm/47, 58cm/47, 60cm/43 Frame Weight 900g +/- 2% (Size 56, Painted, No Hardware) Headset ENVE Integrated IS52/IS52 Internal Drop-In Headset Bearing 1.5" IS52 Upper and Lower Seat Post Diameter ENVE Aero BB Type T47 Inboard Bearing Brake Mount Flat Mount Front Axle 12×100 (Total Length: 122, TP:1.5, TL:15) Rear Axle 12×142 (Total Length: 168, TP:1.0, TL:14) Minimum Tire Size 27mm Optimal Tire Size 31mm - 35mm Maximum Listed Tire Clearance 1x 40mm Maximum Listed Tire Clearance 2x 38mm In-Frame Storage Yes (2 Storage Bags included - 18.22 cubic cm each) Frame Routing Internal Waterbottle Capacity 3 Top Tube Mounts Yes Fender Compatible Yes Wheel Size 700c

COMPONENT COMPATIBILITY Handlebars ENVE IN-Route Stem ENVE IN-Route Seat Posts Aero 275mm x 0 Offset Aero 350mm x 0 Offset Aero 350mm x 20 Offset DRIVETRAIN COMPATIBILITY Shimano Mechanical 1x Yes Shimano Mechanical 2x Yes Shimano Electronic Di2 (1x/2x) Yes SRAM Mechanical 1x Yes SRAM Mechanical 2x No (Fray requires continuous housing for FD) SRAM AXS (1x/2x) Yes Campy Mechanical 1x Yes Campy Mechanical 2x No (Fray requires continuous housing for FD) Campy Electronic EPS Not Compatible BRAKE ROTORS Fork Fork is 160mm only Frame Rear brake/frame is 140mm or 160mm with adapter.
